Product Name: |
Oldham Shaft Coupling |
Weight: |
6-445 G |
Mounting Type: |
Set Screw |
Max Speed: |
2500-9000 RPM |
Material: |
Aluminum |
Torque: |
0.7-10.5 N.m |
Length: |
18-77 Mm |
Color: |
Silver |
Product Name: |
Oldham Shaft Coupling |
Weight: |
6-445 G |
Mounting Type: |
Set Screw |
Max Speed: |
2500-9000 RPM |
Material: |
Aluminum |
Torque: |
0.7-10.5 N.m |
Length: |
18-77 Mm |
Color: |
Silver |

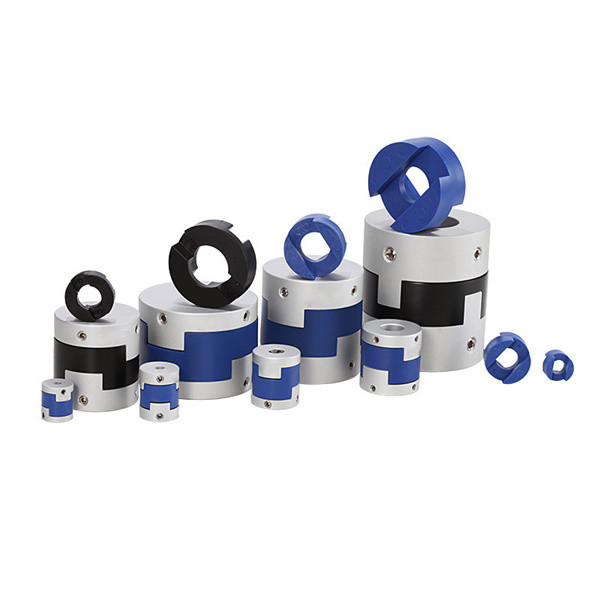

The Oldham Shaft Coupling is a radial displacement coupling that provides efficient, reliable rotational shaft coupling. This coupling is designed to offer high rotation accuracy and low rotational resistance. It features a one-piece construction that allows for easy installation and maintenance. The Oldham Disc Coupling is suitable for a wide range of applications, including high-speed and high-torque applications, and is rated to handle up to 10.5 N.m of torque and up to 9,000 RPM of speed. It is designed for use with shafts of 4-40 mm bore diameter, and mounts securely with the set screw mounting type. With its reliable performance, long service life, and excellent value, the Oldham Shaft Coupling is the ideal choice for many applications.
| Parameter | Value |
|---|---|
| Product Name | Oldham Shaft Coupling |
| Mounting Type | Set Screw |
| Length | 18-77 Mm |
| Torque | 0.7-10.5 N.m |
| Bore Diameter | 4-40 Mm |
| Weight | 6-445 G |
| Color | Silver |
| Outer Diameter | 16-70 Mm |
| Max Speed | 2500-9000 RPM |
| Material | Aluminum |
| Type | Rotational Shaft Coupling, Radial Displacement Coupling, Oldham Disc Coupling |
| model parameter | common bore diameter d1,d2 | ΦD | L | LF | LP | F | M | tightening screw torque (N.M) |
| GH-16X18 | 4,5,6,6.35,7,8 | 16 | 18 | 7.1 | 11.6 | 3.55 | M3 | 0.7 |
| GH-20X25 | 5,6,6.35,7,8,9,9.525 | 20 | 25 | 9.1 | 12.7 | 4.55 | M4 | 1.7 |
| GH-25X28 | 5,6,6.35,8,9,9.525,10,11,12,14 | 25 | 28 | 11.7 | 16.65 | 5.58 | M4 | 1.7 |
| GH-32x33 | 5,6,8,9,9.525,10,11,12,12.7,14,15,16 | 32 | 33 | 14 | 19.5 | 7 | M4 | 1.7 |
| GH-40X35 | 8,9,9.525,10,11,12,12.7,14,14,16,17,18,19,20 | 40 | 35 | 15.5 | 18.4 | 7.75 | M4 | 1.7 |
| GH-45X46 | 8,9,9.525,10,11,12.7,14,15,16,17,18,19,20,22 | 45 | 46 | 21.5 | 18.4 | 9 | M5 | 4 |
| GH-50X38 | 10,12,12.7,14,15,16,17,18,19,20,22,24,25 | 50 | 38 | 16.5 | 15 | 8.25 | M5 | 4 |
| GH-55X57 | 10,12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32 | 55 | 57 | 27 | 17.5 | 10.5 | M5 | 4 |
| GH-63X47 | 14,15,16,17,18,19,20,22,24,25,28,30,32 | 63 | 47 | 21 | 17.5 | 10.5 | M6 | 8.4 |
| GH-70X77 | 16,17,18,19,20,22,24,25,28,30,32,38,40 | 70 | 77 | 36.5 | 25 | 13.5 | M8 | 10.5 |
Tianniu GH Series Oldham Shaft Coupling has a rotational shaft coupling feature which allows for an effective and efficient connection between two rotating shafts. This Oldham Disc Coupling is made of a lightweight high-grade aluminum material and is available in a variety of sizes ranging from 6 to 445 grams. It also has a convenient set screw mounting type for easy installation. The bore diameter of this Oldham Disc Coupling can range from 4 to 40 mm, making it suitable for many applications. This Oldham Shaft Coupling is a reliable and durable product that has been designed to offer a reliable and cost-effective connection between two rotating shafts. It is an ideal solution for applications such as pumps, compressors, and other machinery where the rotational shaft coupling is necessary.
Oldham Shaft Coupling is a rotational shaft coupling that is manufactured by Tianniu. It has a model number GH Series and is designed and made in China. This Oldham Disc Coupling has a bore diameter of 4-40 Mm, a length of 18-77 Mm, and an outer diameter of 16-70 Mm. Its color is silver, and it is made of aluminum. This Oldham Disc Coupling is perfect for applications that require precision alignment and smooth operation.
