Product Details
Place of Origin: China
Brand Name: Tianniu
Model Number: GH Series
Payment & Shipping Terms
Minimum Order Quantity: 2 pcs
Price: Negotiable
Packaging Details: Cartons by sea shipping by Airplane
Delivery Time: 5-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 per month
Color: |
Silver |
Material: |
Aluminum |
Torque: |
0.7-10.5 N.m |
Outer Diameter: |
16-70 Mm |
Product Name: |
Oldham Shaft Coupling |
Length: |
18-77 Mm |
Max Speed: |
2500-9000 RPM |
Weight: |
6-445 G |
Color: |
Silver |
Material: |
Aluminum |
Torque: |
0.7-10.5 N.m |
Outer Diameter: |
16-70 Mm |
Product Name: |
Oldham Shaft Coupling |
Length: |
18-77 Mm |
Max Speed: |
2500-9000 RPM |
Weight: |
6-445 G |

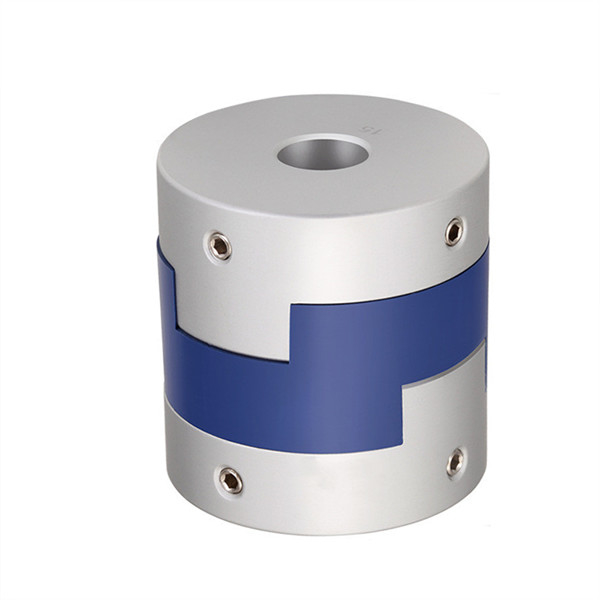

Oldham Shaft Coupling is a reliable and rugged radial displacement shaft drive coupling solution designed to provide a flexible connection between two shafts. The coupling comes in various sizes, with a bore diameter ranging from 4-40 mm, length from 18-77 mm, and weight from 6-445 g, and is made from durable aluminum materials. Its outstanding features include a silver color and a radial displacement capacity for a more efficient shaft drive connection. It is suitable for both low and high-speed applications, providing reliable performance and easy maintenance. Oldham Shaft Coupling is a highly reliable and long-lasting solution for shaft drive coupling applications, making it ideal for a variety of industries.
| Attribute | Value |
|---|---|
| Product Name | Oldham Shaft Coupling |
| Mounting Type | Set Screw |
| Color | Silver |
| Material | Aluminum |
| Length | 18-77 Mm |
| Outer Diameter | 16-70 Mm |
| Bore Diameter | 4-40 Mm |
| Torque | 0.7-10.5 N.m |
| Max Speed | 2500-9000 RPM |
| Weight | 6-445 G |
| model parameter | common bore diameter d1,d2 | ΦD | L | LF | LP | F | M | tightening screw torque (N.M) |
| GH-16X18 | 4,5,6,6.35,7,8 | 16 | 18 | 7.1 | 11.6 | 3.55 | M3 | 0.7 |
| GH-20X25 | 5,6,6.35,7,8,9,9.525 | 20 | 25 | 9.1 | 12.7 | 4.55 | M4 | 1.7 |
| GH-25X28 | 5,6,6.35,8,9,9.525,10,11,12,14 | 25 | 28 | 11.7 | 16.65 | 5.58 | M4 | 1.7 |
| GH-32x33 | 5,6,8,9,9.525,10,11,12,12.7,14,15,16 | 32 | 33 | 14 | 19.5 | 7 | M4 | 1.7 |
| GH-40X35 | 8,9,9.525,10,11,12,12.7,14,14,16,17,18,19,20 | 40 | 35 | 15.5 | 18.4 | 7.75 | M4 | 1.7 |
| GH-45X46 | 8,9,9.525,10,11,12.7,14,15,16,17,18,19,20,22 | 45 | 46 | 21.5 | 18.4 | 9 | M5 | 4 |
| GH-50X38 | 10,12,12.7,14,15,16,17,18,19,20,22,24,25 | 50 | 38 | 16.5 | 15 | 8.25 | M5 | 4 |
| GH-55X57 | 10,12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32 | 55 | 57 | 27 | 17.5 | 10.5 | M5 | 4 |
| GH-63X47 | 14,15,16,17,18,19,20,22,24,25,28,30,32 | 63 | 47 | 21 | 17.5 | 10.5 | M6 | 8.4 |
| GH-70X77 | 16,17,18,19,20,22,24,25,28,30,32,38,40 | 70 | 77 | 36.5 | 25 | 13.5 | M8 | 10.5 |
Tianniu GH Series Oldham Shaft Coupling is an ideal rotational shaft coupling used to connect two shafts that are parallel and can be used to transmit torque while allowing radial displacement. It is made of high-quality aluminum material, light weight, and can bear 0.7-10.5 N.m torque. Its maximum speed is 2500-9000 RPM, and its weight is 6-445 G. It is suitable for a wide range of applications, such as industrial automation, robotics, automotive, medical equipment, and printing equipment. It is an ideal rotational shaft coupling for high-speed, low-vibration and low-noise operations.
We offer a wide selection of Oldham Shaft Coupling to meet your specific needs. Our product is made with the highest quality aluminum, and comes in a range of silver colors. The Tianniu GH Series Oldham Shaft Coupling is designed for superior performance and reliability. It is ideal for radial displacement and minimal backlash coupling applications.
Our Oldham Shaft Coupling is designed to provide maximum performance and reliability for radial displacement and minimal backlash coupling applications. We guarantee that our product is of the highest quality and offers superior performance. Contact us today to find out more about our custom Oldham Shaft Coupling.
At Oldham, we believe in providing outstanding technical support and service to our customers. We are committed to helping you get the most out of your Oldham Shaft Coupling. Our team of experienced engineers are available to answer any questions you may have about installation, operation, maintenance, and troubleshooting.
We also offer a wide range of services to keep your Oldham Shaft Coupling running smoothly. From installation to repair, our team of experts will be ready to assist you. We also offer preventative maintenance services to ensure your Oldham Shaft Coupling is always in top condition.
Our technical support and services are designed to help you get the most out of your Oldham Shaft Coupling. If you need help, please don’t hesitate to contact us. We look forward to hearing from you.
Oldham Shaft Couplings Packaging and Shipping:
The Oldham Shaft Coupling will be packaged in a strong cardboard box that is secured with bubble wrap. We will also pack the necessary accessories in the box. The package will be labelled with a unique tracking number.
The Oldham Shaft Coupling will be shipped via a reputable courier service. We will provide tracking information as soon as the package is shipped so that the customer can track the order and be informed of the expected delivery date.
