Product Details
Place of Origin: China
Brand Name: Tianniu
Certification: ISO-9001
Model Number: GB series
Payment & Shipping Terms
Minimum Order Quantity: 2 pcs
Price: Negotiable
Packaging Details: Cartons by sea shipping by Airplane
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 10000 per month

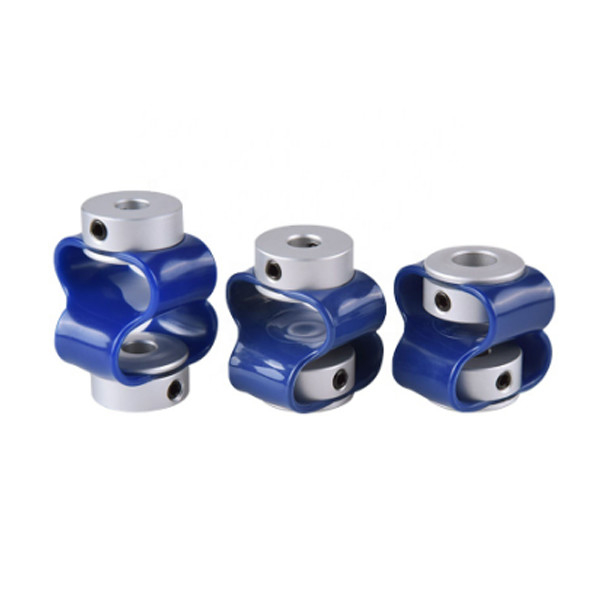

Model: |
GB 8 Fonts Encoder-specific |
Material: |
Aluminum Alloy |
Structure: |
8 Fonts Encoder-specific |
Bore Size: |
34-82mm |
Warranty: |
12 Months |
Elastomer Materia: |
PA66 |
Surface Treatment: |
Anodic Oxidation Treatment |
Model: |
GB 8 Fonts Encoder-specific |
Material: |
Aluminum Alloy |
Structure: |
8 Fonts Encoder-specific |
Bore Size: |
34-82mm |
Warranty: |
12 Months |
Elastomer Materia: |
PA66 |
Surface Treatment: |
Anodic Oxidation Treatment |
Products Features
Bellows coupling: suitable for encoder, CNC machine tool, positioning system, ball screw, indexing plate and planetary gear reducer. Spring coupling: suitable for rotary encoder, stepping motor, screw rod, etc. Parallel coupling: suitable for the connection of stepping motor, encoder, screw rod, etc. Cross slider coupling: suitable for tachometer, encoder, screw rod, machine tool and other machinery. Universal coupling, rigid coupling.
Metal diaphragm coupling: suitable for servo motor, encoder, planetary reducer, ball screw, compressor, mixer, papermaking machinery, robot and other mechanical equipment. Plum blossom coupling: suitable for encoder, servo system, motor spindle drive, packaging machinery, machine tool drive, pump and other machinery.
>Designed for encoder
>Good flexibility, not easy to break
>The elastomer is made of polyurethane, resistant to oil and oxidation
Products Parameters
| model parameter | common bore diameter d1,d2 | ΦD | L | LP | S | F | M | tightening screw torque (N.M) |
| GB-15X24 | 3,4,5,6,6.35,7,8 | 15 | 24 | 20 | 1.8 | 2.5 | M3 | 0.7 |
| GB-15x32 | 3,4,5,6,6.35,7,8 | 15 | 32 | 20 | 1.8 | 2.5 | M3 | 0.7 |
| GB-18x28 | 4,5,6,6.35,7,8,9,10 | 18 | 28 | 25 | 1.8 | 3.1 | M4 | 1.7 |
| GB-18x38 | 4,5,6,6.35,7,8,9,10 | 18 | 38 | 25 | 1.8 | 3.1 | M4 | 1.7 |
| model parameter | Rated torque (N.M)* |
allowable eccentricity (mm)* |
allowable deflection angle (°)* |
allowable axial deviation (mm)* |
maximum speed rpm |
static torsional stiffness (N.M/rad) |
moment of inertia (Kg.M2) |
Material of shaft sleeve | Material of shrapnel | surface treatment | weight (g) |
| GB-15X24 | 0.5 | 1 | 2 | + 2-5 | 8000 | 15 | 4.5x10-4 | High strength aluminum alloy | PU |
Anodizing treatment |
8 |
| GB-15X32 | 0.5 | 1 | 2 | + 2-5 | 8000 | 15 | 4.5x10-4 | 8 | |||
| GB-18X28 | 0.8 | 1 | 3 | + 2-5 | 6000 | 20 | 5.6x10-4 | 13 | |||
| GB-18X38 | 0.8 | 1 | 3 | + 2-5 | 6000 | 20 | 5.6x10-4 | 13 |
