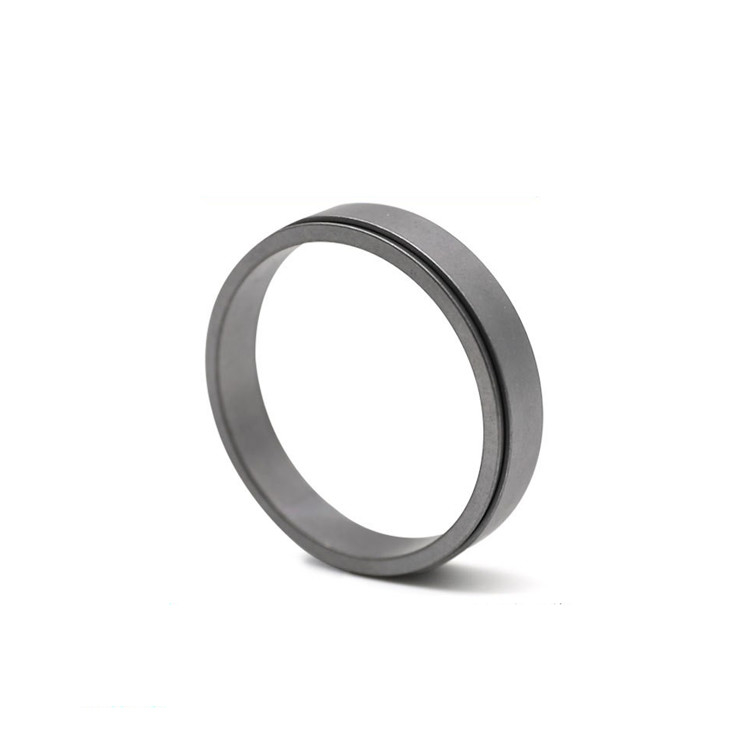

Z1 Shaft Locking Assembly No Keyway High Hardness Elements

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: ISO-9001

Model Number: Z1

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD10-90

Packaging Details: Cartons

Delivery Time: 3-5working days

Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram, T/T

Supply Ability: 1000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Z1 Locking Assembly, Z1 Shaft Locking Assembly, Shaft Locking Assembly No Keyway


Model Number:	Z1 Locking Assembly	Precision Rating:	P0
Material:	GCr15 Bearing Steel	Inside Diameter:	9-500
Weight:	0.002-16.5kg	Outside Diamater:	12-540mm

Model Number:	Z1 Locking Assembly
Precision Rating:	P0
Material:	GCr15 Bearing Steel
Inside Diameter:	9-500
Weight:	0.002-16.5kg
Outside Diamater:	12-540mm

Description

Z1 Shaft Locking Assembly No Keyway High Hardness Elements

Z1 Locking Elements Locking Device No Keyway High Hardness

Products Features

The Locking Assembly connection is a precise, gap-free, keyless connection.Reliably eliminates the disadvantages such as stress concentration and rolling keys caused by key transmission. It has the advantages of convenient and quick positioning, long service life and not easy to corrode. There is no relative sliding during work and no wear. It is especially suitable for use in various high-precision transmission and servo mechanisms.

When the expansion coupling sleeve is installed in the axial direction, it can easily adjust the required position size of the axial direction and the relative position of the parts without any axial fixation.

With the expansion of the scope of application, all kinds of complex connection forms in the machinery can be replaced by special expansion and tight coupling sleeves. Simplify the transmission structure or become an integral part of a mechanical component, such as a backlash-free diaphragm coupling.

The selection of Locking Assembly can make the mainframe supporting commercialization rate high, which is convenient for the progress and development of mainframe technology and product update.

The expansion joint sleeve can work in the temperature range of -30ºC to 200ºC, and can be made of various materials according to different working environments and media

Products Parameters

model				Pf＝100N/mm2		G (kg)
d	D	L	l	F₁ (KN)	M_t (KN·m)
mm				F₁ (KN)	M_t (KN·m)
10	13	4.5	3.7	1.4	7.0	0.01
12	15			1.6	9.8	0.01
13	16			1.8	11	0.01
14	18	6.3	5.3	2.8	19	0.01
15	19			3.0	22	0.01
16	20			3.2	25	0.01
17	21			3.4	28	0.01
18	22			3.6	32	0.01
19	24			3.8	35	0.01
20	25			4.0	40	0.01
22	26			4.5	50	0.01
24	28			4.8	56	0.01
25	30			5.0	60	0.01
28	32			5.6	80	0.01
30	35			6.0	90	0.01
32	36			6.4	100	0.01
35	40	7.0	6.0	8.2	150	0.02
36	42			8.4	160	0.02
38	44			8.6	166	0.02
40	45	8.0	6.6	9.9	200	0.02
42	48	8.0	6.6	10.4	220	0.03
45	52	10	8.6	14.6	330	0.04

基本尺寸				当Pf＝100N/mm2 时的额定负荷		重量 G (kg)
d	D	L	l	F₁ (KN)	M_t (KN·m)
mm				F₁ (KN)	M_t (KN·m)
48	55	10	8.6	15.6	370	0.05
50	57			16.2	400	0.05
55	62			17.8	490	0.05
56	64	12	10.4	22.0	610	0.06
60	68			23.5	700	0.07
63	71			24.8	780	0.08
65	73			25.6	830	0.09
70	79	14	12.2	32.0	1120	0.11
75	84	14	12.2	34.4	1290	0.12
80	91	17	15	45.0	1810	0.19
85	96			48	2040	0.20
90	101			51	2290	0.22
95	106			54	2550	0.23
100	114	21	18.7	70	3500	0.38
105	119			73.2	3820	0.40
110	124			77	4250	0.41
120	134			84	5050	0.45
125	139			92	5750	0.62
130	148	28	25.3	124	8050	0.85

基本尺寸				当Pf＝100N/mm2时的额定负荷		重量 G (kg)
d	D	L	l	F₁ (KN)	M_t (KN·m)
mm				F₁ (KN)	M_t (KN·m)
140	158	28	25.3	134	9350	0.91
150	168			143	10700	0.97
160	178			152.5	12200	1.02
170	191	33	30	192	16300	1.50
180	201			204	18300	1.58
190	211			214	20400	1.68
200	224	38	34.8	262	26200	2.32
210	234			275	28900	2.45
220	244			288	37700	2.49
240	267	42	39.5	358	43000	3.52
250	280	48	44	415	52000	4.68
260	290	48	44	435	56500	4.82
280	313	53	49	520	72500	6.27
300	333	53	49	555	83000	6.47
320	360	65	59	710	114000	10.90
340	380			755	128500	11.50
360	400			800	144000	12.20
380	420			845	160500	12.80
400	440			890	178000	13.50
420	460			935	196000	14.1
450	490			998	224500	15.2
480	520			1070	256000	16.00
500	540			1110	278000	16.50
