Product Details
Place of Origin: China
Brand Name: Tianniu
Certification: ISO-9001
Model Number: Z20
Payment & Shipping Terms
Minimum Order Quantity: 2
Price: Negotiable
Packaging Details: Cartons by sea shipping by airplane
Delivery Time: 5-7working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 per month
Model Number: |
Z20 Locking Assembly |
Material: |
GCr15 Bearing Steel |
Weight: |
0.37-9.2KG |
Outer Diameter: |
60-260mm |
Thickness (mm): |
72-197mm |
Bore Size: |
25-160mm |
Torque (kNm: |
17-145 |
Model Number: |
Z20 Locking Assembly |
Material: |
GCr15 Bearing Steel |
Weight: |
0.37-9.2KG |
Outer Diameter: |
60-260mm |
Thickness (mm): |
72-197mm |
Bore Size: |
25-160mm |
Torque (kNm: |
17-145 |

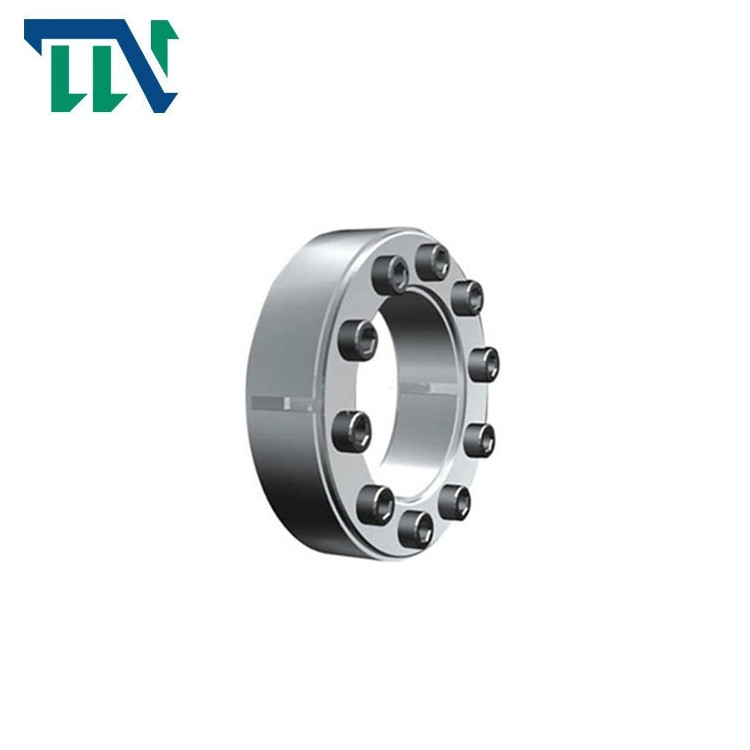

Z20 Keyless Locking Device Power Lock Assembly
Products Features
The z-series locking assembly produced by Changzhou tianniu transmission company is a keyless connection structure. Under the action of axial force, the inner and outer sleeves shrink and expand closely with the shaft and hub to produce enough friction to transmit torque and axial force, so as to achieve the purpose of mechanism operation.
Features: good centering performance of connection; No heating is required during assembly; It is convenient to disassemble or adjust the relative position between the shaft and the hub; No stress concentration; Strong bearing capacity. Usage: when the hub is connected with the shaft, it plays a tight closing role after being tightened by bolts. Because the product is a conical surface or conical structure, it changes into radial force through axial force movement, resulting in friction and meeting the torque requirements. When disassembling, loosen all the bolts. There is no need to remove the bolts. Then screw the appropriate bolts into the disassembly hole with an Allen wrench and loosen the disassembled parts
Products Parameters
fundamental dimensions |
internal hexagon headed bolt |
Rated load | G (kg) | ||||||||
| d | D | D1 | L1 | L | L2 |
sizes |
Qty |
MA (N·m) |
Mt (kN·m) | F1 (kN) | |
| mm | |||||||||||
| 25 | 60 | 37.5 | 27.5 | 20 | 17 | M6×18 | 9 | 17 | 0.20 | 22 | 0.37 |
| 30 | 65 | 42.5 | 9 | 0.30 | 24 | 0.42 | |||||
| 35 | 72 | 47.5 | 12 | 0.50 | 35 | 0.48 | |||||
| 40 | 78 | 52.5 | 15 | 0.60 | 40 | 0.54 | |||||
| 45 | 92 | 60 | 33.5 | 24 | 20 | M8×22 | 12 | 41 | 1.0 | 55 | 0.92 |
| 50 | 98 | 65 | 12 | 1.2 | 60 | 1.0 | |||||
| 55 | 105 | 70 | 14 | 1.5 | 70 | 1.1 | |||||
| 60 | 110 | 75 | 14 | 1.7 | 72 | 1.2 | |||||
| 70 | 138 | 90 | 39.5 | 28 | 24 | M10×25 | 14 | 83 | 3 | 110 | 2.3 |
| 80 | 145 | 100 | 14 | 4 | 120 | 2.4 | |||||
| 90 | 160 | 110 | 16 | 5 | 130 | 2.8 | |||||
| 100 | 180 | 122.5 | 47 | 33 | 26 | M12×30 | 14 | 145 | 6.5 | 150 | 3.8 |
| 110 | 190 | 132.5 | 14 | 7 | 160 | 4.1 | |||||
| 120 | 205 | 142.5 | 16 | 9 | 190 | 4.7 | |||||
| 140 | 230 | 165 |
52 |
38 |
34 |
M12×35 | 22 | 14 | 240 | 7.4 | |
| 160 | 260 | 185 | 26 | 20 | 310 | 9.2 | |||||
