DLY8-25A DLY8-63A Teeth Multiple Disk Electromagnetic Clutch High Torque

Name: DLY8-25A DLY8-63A Teeth Multiple Disk Electromagnetic Clutch High Torque
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: DLY8
Price: 149.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: CGS

Model Number: DLY8

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Cartons by sea shipping by airplane

Delivery Time: 5-10working days

Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability: 10000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            DLY8-25A multiple disk Electromagnetic Clutch, DLY8-63A Electromagnetic Clutch High Torque, electromagnetic multiple disk clutch


Name:	DLY8 Series Industrial Electromagnetic Brake	Inner Diameter:	27.5-265mm
Outer Diameter: 85-253mm:	61-460mm	Length:	34.5-70.5mm
Warranty:	12 Months	Customized Support:	OEM, ODM
Weight:	0.57kg-34kg

Name:	DLY8 Series Industrial Electromagnetic Brake
Inner Diameter:	27.5-265mm
Outer Diameter: 85-253mm:	61-460mm
Length:	34.5-70.5mm
Warranty:	12 Months
Customized Support:	OEM, ODM
Weight:	0.57kg-34kg

Description

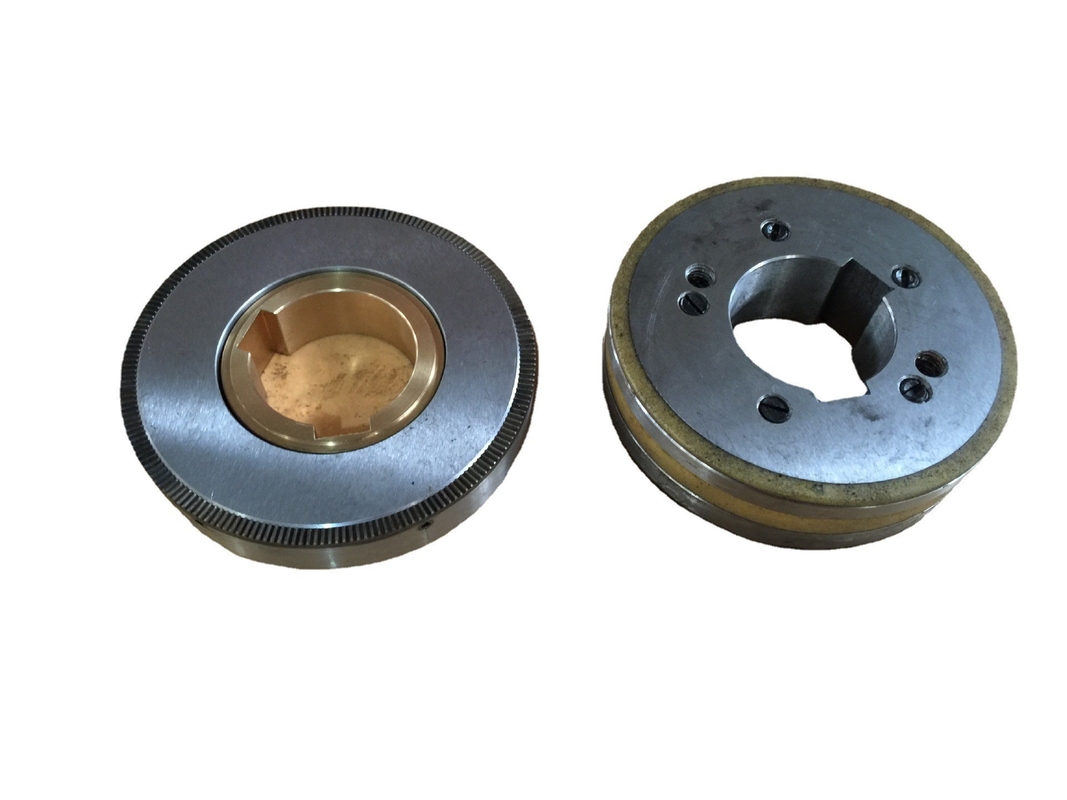

DLY8-25A DLY8-63A Teeth Multiple Disk Electromagnetic Clutch High Torque

DLY8 Teeth-type Multi Disc Electromagnetic Clutch High Torque Clutch

Products Introduction

The clutch one way bearing is mainly used in machinery driving system,and

widely in metal processing machine,metallurgy,steel rolling machine,packing

machine,medical machine,food processing machine textile and printing and

dying machine,paper making machine,precision machine tool etc.

Changzhou TIANNIU Transmission mainly produces electromagnetic clutch and electromagnetic brake. With 25 years of production experience, we have advanced production technology, mature professional technology and testing means. At present, it produces 18 series of 800 specifications of products, which are widely used in machine tools, packaging machinery, printing machinery, light industrial machinery, food machinery, medical machinery, textile machinery, plastic machinery, papermaking machinery, lifting and transportation machinery, petroleum machinery, metallurgical machinery, coal mining machinery and other industries, and are used in the mechanical transmission system of various test stands.

The company has a group of high-quality, young management personnel and several senior engineers engaged in product development and design and technical workers with many years of operation experience; The company has recently introduced a number of advanced assembly lines and adopted computer-aided design to produce supporting products and various non-standard electromagnetic clutches for many large domestic enterprises

Products Parameters

SIZE	rated transmitting torqueN.m	rated voltage DC V	coil consumption power(20°)W	max engagement revolutionr/min	allowed max revolvtion(r/min)
25A	250	24	27	20	3300
63A	400	24	42	相对静止	2500

SIZE	Radial Demensions(mm)									Axial Demensions(mm)
SIZE	D1	D2	D3	D4	Φ	h	e	M	L	L1	L2	L3	L4	δ
DLY8-25A	127	60	48	42	30	33.3	8	6-M4深14	52	45	4.5	8	6.5	0.4±0.1
DLY8-63A	165	85	68	56	40	43.3	12	6-M10深25	61	55	5.5	10	7.5	0.45±0.05

DLY8-25A DLY8-63A Teeth Multiple Disk Electromagnetic Clutch High Torque 0
