Product Details
Place of Origin: China
Brand Name: Tianniu
Certification: CGS ISO9001
Model Number: DZM
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Cartons by sea shipping by airplane
Delivery Time: 5-10working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 10000 per month
Name: |
DZM Electromagnetic Brake Dry Type Multidisc |
Inner Diameter: |
27.5-265mm |
Outer Diameter: 85-253mm: |
61-460mm |
Length: |
34.5-70.5mm |
Warranty: |
12 Months |
Customized Support: |
OEM, ODM |
Weight: |
0.57kg-34kg |
Name: |
DZM Electromagnetic Brake Dry Type Multidisc |
Inner Diameter: |
27.5-265mm |
Outer Diameter: 85-253mm: |
61-460mm |
Length: |
34.5-70.5mm |
Warranty: |
12 Months |
Customized Support: |
OEM, ODM |
Weight: |
0.57kg-34kg |
Products Introduction

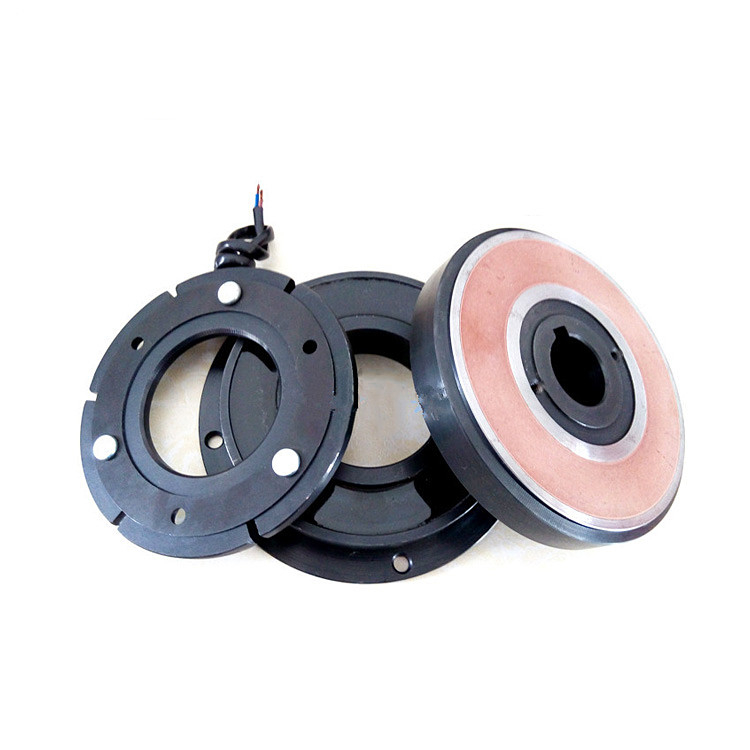

DZM series is a multi-chip electromagnetic clutch with no slip ring and power-on operation.
The coil does not rotate, a friction pair, compact structure, large transfer moment, fast response
and no no no-load loss. The mechanical transmission system suitable for high frequency
operation can combine or separate the driven part and the active part when the active
part is running. It is widely used in packaging machinery, printing machinery, textile machinery,
light industry machinery and office machinery.
Changzhou Tianniu Transmission is a company specializing in the production of electromagnetic clutches and brakes. It is an early start-up company specializing in the production of electromagnetic clutches and brakes. It has a history of developing electromagnetic clutches for more than 30 years.
The registered trademark of the product is "Hemisphere", and 20 series of products with more than 500 specifications have been developed, including wet multi-plate electromagnetic clutch, dry multi-plate electromagnetic clutch (brake), tooth-clamped electromagnetic clutch, and single-plate electromagnetic clutch. (brake) device, pneumatic multi-disc clutch (brake) device, electromagnetic clutch brake, electromagnetic power-off brake (clutch) device, various models of automobile air conditioner electromagnetic clutch
Products Parameters
| SIZE | drag dgnamic torque(N.m) | rated dymanic torqueN.m | rated voltage (DC V) | coil consumption power(20°)W | allowed max revolvtion(r/min) | weight(kg) |
| DZM2-1T | 10 | 11 | 24 | 26 | 3000 | 2 |
| DZM2-4 | 40 | 44 | 24 | 33 | 3000 | 3.2 |
| DZM2-10/10T | 100 | 110 | 24 | 43 | 3000 | 4 |
| DZM2-16T | 160 | 175 | 24 | 47 | 2500 | 7.8 |
| DZM2-41T | 400 | 440 | 24 | 62 | 2000 | 15 |
| DZM2-64T | 640 | 700.0 | 24 | 69 | 1750 | 21 |
| SIZE | Radial Demensions(mm) | Axial Demensions(mm) | ||||||||
| D1 | D2 | D3 | Φ | d1 | L | L1 | L2 | L3 | δ | |
| DZM2-1T | 100 | 50H7 | 85 | 23 | 4*Φ6.5 | 45 | 42 | 5 | 4.5 | 0.3 |
| DZM2-4 | 120 | 80H9 | 102 | 32H9 | 6*Φ6.5 | 52 | 45 | 6 | 5 | 0.3 |
| DZM2-10/10T | 147 | 100H9/70H7 | 125 | 42H9/43 | 6*Φ8.5 | 58 | 53 | 7 | 4 | 0.35 |
| DZM2-16T | 162 | 80H7 | 142 | 49 | 6*Φ8.5 | 62 | 57 | 7 | 4 | 0.4 |
| DZM2-41T | 202 | 120H7 | 180 | 63 | 6*Φ10.5 | 76 | 70 | 9 | 4 | 0.5 |
| DZM2-64T | 235 | 125H7 | 210 | 73±0.1 | 6*Φ12.5 | 86 | 80 | 10 | 4 | 0.6 |
Mounting example:
