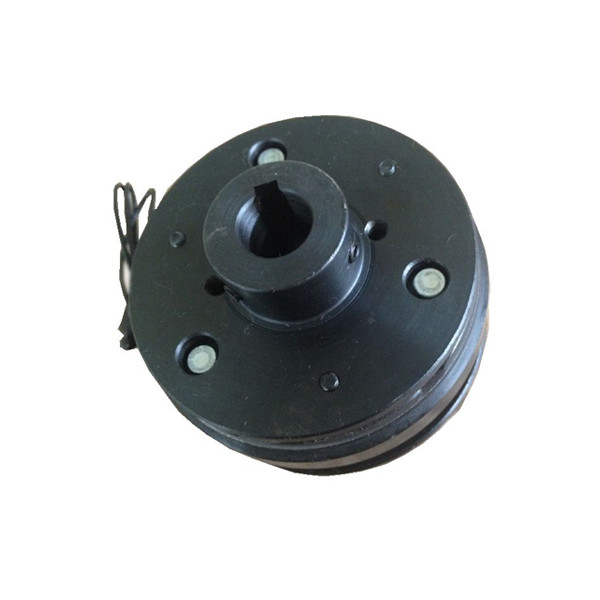

SEK2D Electromagnetic Clutch 24V Single Disc

Name: SEK2D Electromagnetic Clutch 24V Single Disc
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: SEK series
Price: 149.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: CGS ISO9001

Model Number: SEK series

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Cartons by sea shipping by airplane

Delivery Time: 5-10working days

Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability: 10000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            SEK2D Electromagnetic clutch, Electromagnetic clutch 24V, Electromagnetic clutch Disc Single


Name:	SEK Electromagnetic Brake Electric Clutch Micro	Inner Diameter:	27.5-265mm
Outer Diameter: 85-253mm:	61-460mm	Length:	34.5-70.5mm
Warranty:	12 Months	Customized Support:	OEM, ODM
Weight:	0.57kg-34kg

Name:	SEK Electromagnetic Brake Electric Clutch Micro
Inner Diameter:	27.5-265mm
Outer Diameter: 85-253mm:	61-460mm
Length:	34.5-70.5mm
Warranty:	12 Months
Customized Support:	OEM, ODM
Weight:	0.57kg-34kg

Description

SEK2D Electromagnetic Clutch 24V Single Disc

SEK2D Electromagnetic clutch 24V Single Disc Electromagnetic Clutch

Products Introduction

Electromagnetic single disc clutches/brakes has one friction pair,it has festures of simple in structure,convient in installation,high in work frequency,agile in actuation,non-drag torque and low noise etc,widely use in the machinery driving systems of printing ,papermaking ,pack-aging,medical treatment ,texitile ,construction,boats and ships,office machine,the outer equipment of the computer,meter and instrument,communication etc,realize the functions of engaging and disengaging,reversing changing the directions,braking,positioning etc.

Performance characteristics and working principle of electromagnetic clutch:

1. Easy assembly and maintenance: the magnetic field coil in the ball bearing is fixed, so it is convenient to use without removing the intermediate magnetic core or using carbon brush.

2. High speed response: due to dryness, the torque is transmitted quickly and convenient action can be realized.

3. Strong and durable: with good heat dissipation and advanced materials, it is very durable even under high frequency and high energy consumption.

Products Parameters

SIZE	rated dymanic torqueN.m	rated statictorque(N.m)	rated voltage (DC V)	coil consumption power(20°)W
SEK2D	20	22	24	18.5

SIZE	number of tooth(Z)	Modulus	pressure angle	the base tangent length	tooth number of measuring span	daimeter of pitch circle	daimeter of addundum circle
SEK2D	100	75H9	40	25	21	5	25
