Product Details
Place of Origin: China
Brand Name: Tianniu
Certification: CGS ISO9001
Model Number: DLZ2 series
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Cartons by sea shipping by airplane
Delivery Time: 5-10working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 10000 per month
Name: |
DLZ 2 Electromagnetic Brake Electric Clutch Micro |
Inner Diameter: |
27.5-265mm |
Outer Diameter: 85-253mm: |
61-460mm |
Length: |
34.5-70.5mm |
Warranty: |
12 Months |
Customized Support: |
OEM, ODM |
Weight: |
0.57kg-34kg |
Name: |
DLZ 2 Electromagnetic Brake Electric Clutch Micro |
Inner Diameter: |
27.5-265mm |
Outer Diameter: 85-253mm: |
61-460mm |
Length: |
34.5-70.5mm |
Warranty: |
12 Months |
Customized Support: |
OEM, ODM |
Weight: |
0.57kg-34kg |
Products Introduction

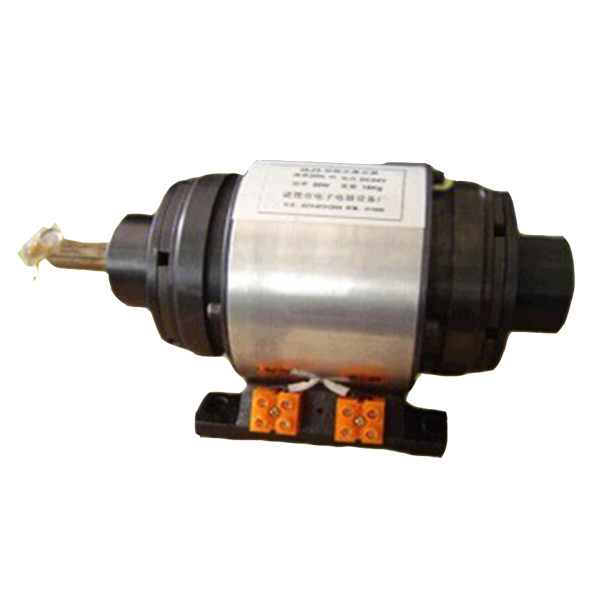

Micro Electromagnetic clutch brake unit is a combined and multi-functional product,mainly used in machinery driving system,it can realize two functions of starting and braking for load while the driving parts are working ,and also ca realize the starting and stopping control with high precision,when it is equipped with special power controlling device,it widely used in machines that required positioning with high precision ,such as printing machine,packaging machine and the equipment of plywood producing line.
These micro clutches and brakes are ideal for compact precision equipment where variations in torque and response must be avoided, such as office, communications, and automobile equipment. In addition to the 102 (clutch) and 112 (brake) models, which share the same basic design, we also provide the CYT model (clutch), which has a long history of customization to customer needs.
Characteristics of electromagnetic clutch
1. High speed response: because it is dry type, the transmission of torque is very fast and convenient action can be achieved.
2. Strong durability: the heat dissipation is good, and advanced materials are used, which is very durable even for the use of high frequency and high energy.
3. Easy assembly and maintenance: it belongs to the static shape of the magnetic field coil hidden in the ball bearing, so there is no need to take out the center core and use the carbon brush, which is simple to use.
4. Sure action: the use of plate-shaped shrapnel will not loosen despite strong vibration, with good durability
Products Parameters
| SIZE | rated dymanic torqueN.m | Static Torque | rated voltage (DC V) | coil consumption power(20°)W | allowed max revolvtion(r/min) | |||
| Clutch | Brake | Clutch | Brake | Clutch | Brake | |||
| DLZ2-120 | 1200 | 400 | 1320 | 440 | 24 | 125 | 95 | 1500 |
| DLZ2-180 | 1800 | 800 | 1980 | 880 | 200 | 120 | 1200 | |
| SIZE | Radial Demensions(mm) | Axial Demensions(mm) | ||||||||||||
| D1 | D2 | D3 | D4 | J | K | L | L1 | L2 | L3 | L4 | L5 | B | δ | |
| DLZ2-120 | 420 | 205 | 176 | 205 | 4-M12 | 6-M10 | 152.5 | 77 | 70 | 38 | 25 | 20 | 31.3 | 0.8 |
| DLZ2-180 | 500 | 205 | 180 | 220 | 8-M12 | 8-M20 | 183.8 | 88 | 70 | 61 | 25 | 35 | 53.8 | 0.8 |
