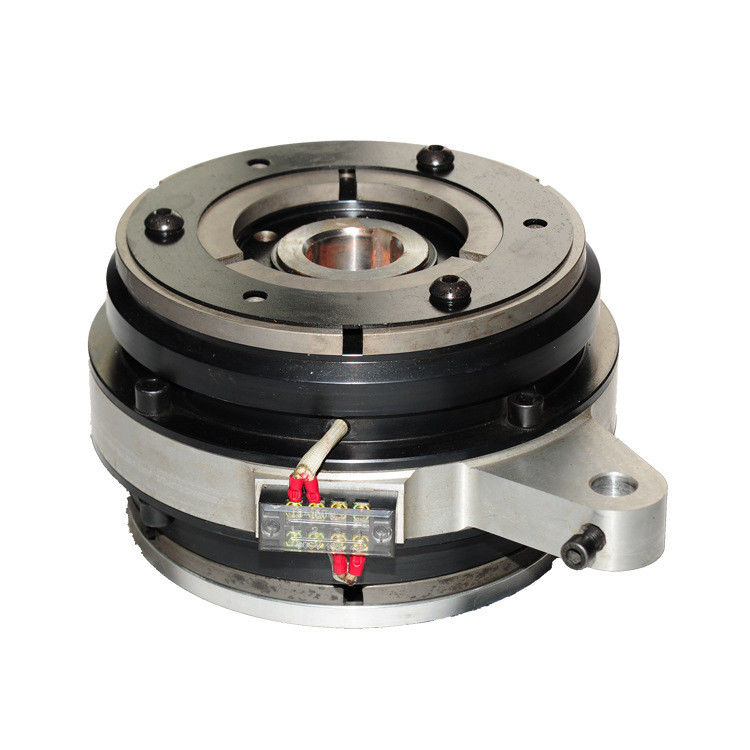

DLZ5 Industrial Electromagnetic Clutch For Weaving Loom

Name: DLZ5 Industrial Electromagnetic Clutch For Weaving Loom
Brand: Changzhou Tianniu Transmission Equipment Co., Ltd
SKU: DLZ5 series
Price: 149.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tianniu

Certification: CGS ISO9001

Model Number: DLZ5 series

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Cartons by sea shipping by airplane

Delivery Time: 5-10working days

Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability: 10000 per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Weaving Loom Electromagnetic Clutch, Industrial Electromagnetic Clutch, DLZ5 Electromagnetic Clutch


Name:	DLZ5 Electromagnetic Brake Electric Clutch Micro	Inner Diameter:	27.5-265mm
Outer Diameter: 85-253mm:	61-460mm	Length:	34.5-70.5mm
Warranty:	12 Months	Customized Support:	OEM, ODM
Weight:	0.57kg-34kg

Name:	DLZ5 Electromagnetic Brake Electric Clutch Micro
Inner Diameter:	27.5-265mm
Outer Diameter: 85-253mm:	61-460mm
Length:	34.5-70.5mm
Warranty:	12 Months
Customized Support:	OEM, ODM
Weight:	0.57kg-34kg

Description

DLZ5 Industrial Electromagnetic Clutch For Weaving Loom

Products Introduction

Working principle:

The driving part and the driven part can be temporarily separated from each other and can be gradually engaged by friction between the contact surfaces or by using liquid as the transmission medium (hydraulic coupling) or by using magnetic transmission (electromagnetic clutch). Transmit torque, and in the process, the two parts can rotate with each other.

Changzhou TIANNIU Transmission Equipment Co., Ltd (Changzhou TIANNIU Clutch Factory) is a professional one way clutch bearing supplier, the primary products are micro electromagnetic clutch, torque limiter coupling, sliding shaft coupling, flexible propeller shaft coupling, locking assembly and shaft couplings, etc.

We have been in Sprag Clutch Bearing and clutch one way bearing industry for more than 10years, persisting in the business principle of products tailored to requirements from clients.We service through listening to our customers, applying innovation and building with craftsmanship to meet all their needs.

Products Parameters

SIZE	Rated Transmitting TorqueN.m		Static TorqueN.m		Rated Voltage (DC V)	Coil Consumption Power(20°)W		Allowed Max Revolvtion(r/min)
SIZE	Clutch	Brake	Clutch	Brake	Rated Voltage (DC V)	Clutch	Brake	Allowed Max Revolvtion(r/min)
DLZ5-1	10	10	11	11	24	16	16	4000
DLZ5-8	80	80	90	90		36	38	3000
DLZ5-25	250	250	275	275		50	49	2000

SIZE	A1	A2	B1	B2	C	D1	E	F	G	K	M	L	N	V1	V2
DLZ5-1	65	90	90	105	65	100	27.5	58	10	132	187	M3深8	13.5	6.5	11
DLZ5-8	80	110	110	130	80	125	30	66	12	171	236	M4深6	15	9	14
DLZ5-25	105	135	140	160	90	150	35	81	15	210	295	M6深11	20	11	19

SIZE	X1	X2	Z1	Z2	Φ1	Φ2	Q1	Q2	Q3	h1	h2	e1	e2	δ
DLZ5-1	3-120°	60°	13.5	6.5	14	45	30	25	78.5	11	42	5	5	0.2
DLZ5-8	6-60°	30°	24	11	28	75	60	50	14.9	24	71	8	8	0.3
DLZ5-25	6-60°	30°	28	14	42	110	110	65	231	37	104	12	16	0.5

DLZ5 Industrial Electromagnetic Clutch For Weaving Loom 0
