Product Details
Place of Origin: China
Brand Name: Tianniu
Certification: CGS
Model Number: DLY1
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Cartons by sea shipping by airplane
Delivery Time: 5-10working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 10000 per month
Name: |
DLY1 Series Industrial Electromagnetic Brake |
Inner Diameter: |
27.5-265mm |
Outer Diameter: 85-253mm: |
61-460mm |
Length: |
34.5-70.5mm |
Warranty: |
12 Months |
Customized Support: |
OEM, ODM |
Weight: |
0.57kg-34kg |
Name: |
DLY1 Series Industrial Electromagnetic Brake |
Inner Diameter: |
27.5-265mm |
Outer Diameter: 85-253mm: |
61-460mm |
Length: |
34.5-70.5mm |
Warranty: |
12 Months |
Customized Support: |
OEM, ODM |
Weight: |
0.57kg-34kg |

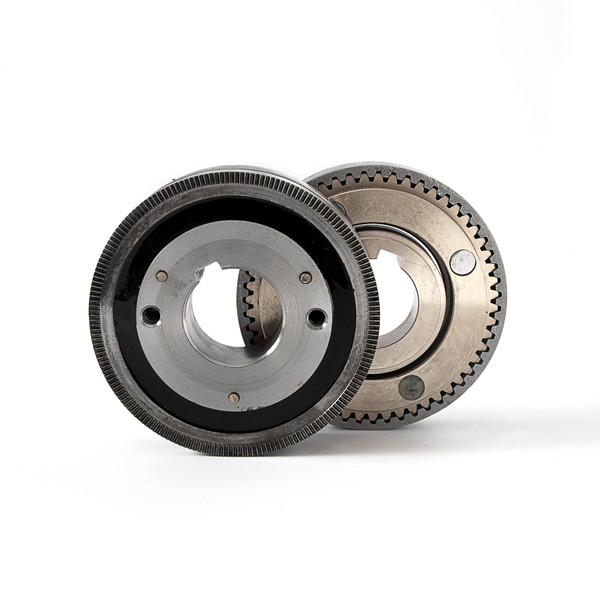

High Speed DLY1-16 DLY1-40 24VDc Electromagnetic Clutch and Brake
Products Introduction
The clutch one way bearing is mainly used in machinery driving system,and widely in metal processing machine,metallurgy,steel rolling machine, packing machine, medical machine, food processing machine textile and printing and dying machine, paper making machine, precision machine tool etc.
The working principle of electromagnetic clutch briefly introduces the characteristics.
1. High speed response: because it is dry type, the torque is transmitted quickly and convenient action can be achieved.
2. High energy, high durability and good heat dissipation
3. Easy assembly and maintenance: it belongs to the static shape of the magnetic field coil hidden in the ball bearing, so there is no need to take out the middle core and use the carbon brush, which is simple to use.
4. Sure action: the use of plate-shaped shrapnel will not loosen despite strong vibration, with good durability
| SIZE | Radial Demensions | Axial Demensions | ||||||||||||||||
| D1 | D2 | D3 | D4 | D5 | D6 | D | d | b | Φ1 | Φ2 | L | L1 | L2 | L3 | L4 | L5 | δ | |
| DLY1-16 | 115 | 90 | 80 | 60H8 | 45H11 | 115 | 45 | 40 | 12 | 4-Φ7 | 4-ΦII | 52 | 7 | 8 | 2 | 24 | 22 | 0.25 |
| DLY1-40 | 145 | 115 | 92 | 70H7 | 50H11 | 145 | 50 | 45 | 12 | 6-Φ7 | 6-ΦII | 70 | 9 | 8 | 3 | 34 | 26 | 0.5 |
